INTERNAL FAQ — Integration Worker Service Installation & Deployment

Overview

This guide covers how to install and deploy the FocusPoint Integration Worker Service on a production server. The worker service takes over SAP Quartz job processing from the web application, allowing the web app to focus on serving the portal while the worker handles all inbound SAP integration tasks.

Prerequisites

• Access to the production server (e.g., PR18 — 10.0.0.5)
• Latest master build deployed to the web application
• Latest PPM build available at E:\PPMLastBuild
• Latest Integration Worker build at E:\IntegrationWorkerService_Latest_Build
• Administrator access (required for Windows Service installation)

Step 1 — Update the Web Application

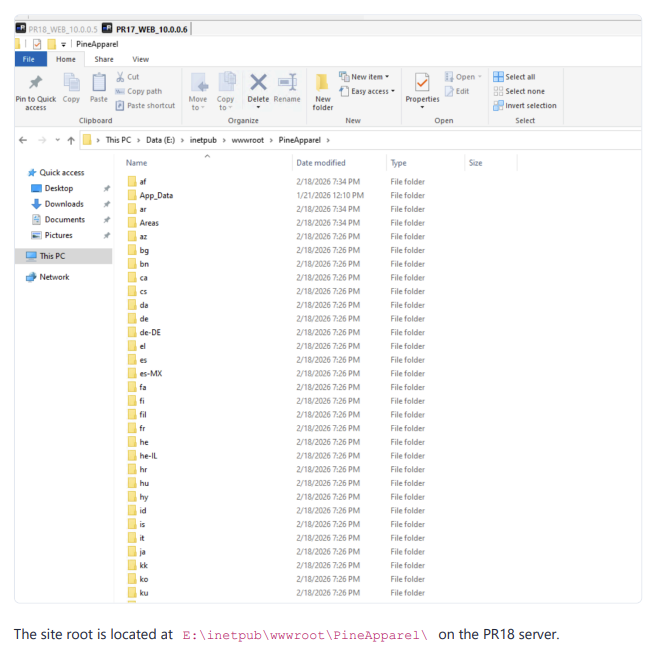

Deploy the latest master branch to the web application site on the production server. The site root is located at E:\inetpub\wwwroot\PineApparel\ on the PR18 server.

Step 1.1 — Disable SAP Jobs on the Web App

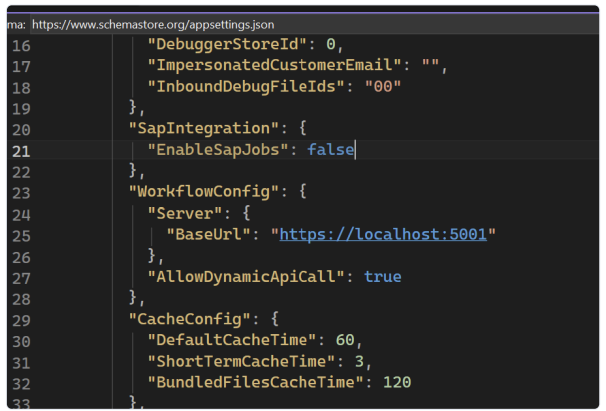

Open App_Data/appsettings.json in the web application and set EnableSapJobs to false:

"SapIntegration": {
    "EnableSapJobs": false
},

⚠️ Important: When EnableSapJobs is false, the web app will NOT run any SAP Quartz jobs. The worker service takes over this responsibility entirely.

Step 2 — Update PPM (Processor Module)

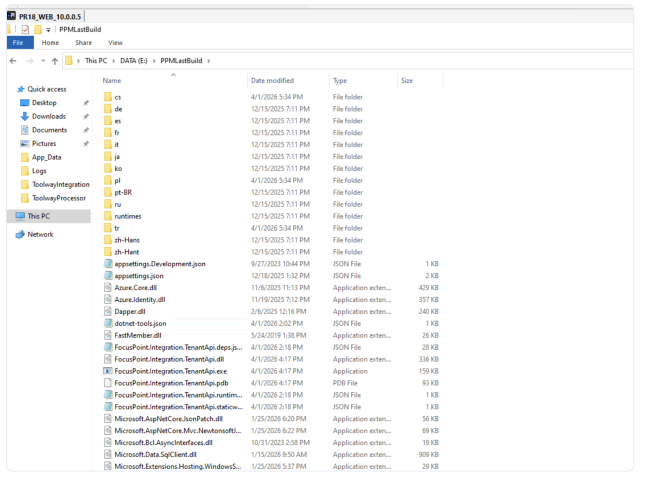

Navigate to the production server (PR18) and replace the existing PPM folder contents with the latest build from E:\PPMLastBuild.

The PPM contains the FocusPoint.Integration.TenantApi application which handles inbound SAP XML messages and routes them to the correct tenant database.

Step 3 — Install the Integration Worker Service

Step 3.1 — Create the Worker Folder

On the production server, create a new folder under E:\Integration\ using the company name as a suffix:

E:\Integration\CompanyNameIntegration

Copy all files from E:\IntegrationWorkerService_Latest_Build into this new folder. The folder includes App_Data, Logs, Modules, and the worker executable with all dependencies.

Step 3.2 — Configure appsettings.json

Open App_Data/appsettings.json inside the new folder and update the configuration. Use an existing installation as a reference:

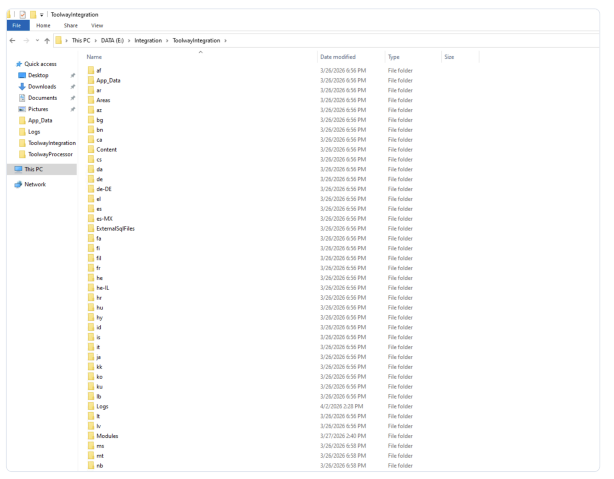

E:\Integration\ToolwayIntegration\App_Data\appsettings.json

Step 3.3 — Install as a Windows Service

Open PowerShell as Administrator, navigate to the worker folder, and run the deploy script:

cd E:\Integration\CompanyNameIntegration
.\deploy-worker.ps1

The script reads the NodeName from appsettings.json and automatically publishes the application, creates the Windows Service, configures automatic restart on failure, and starts the service.

Step 3.4 — Verify the Service is Running

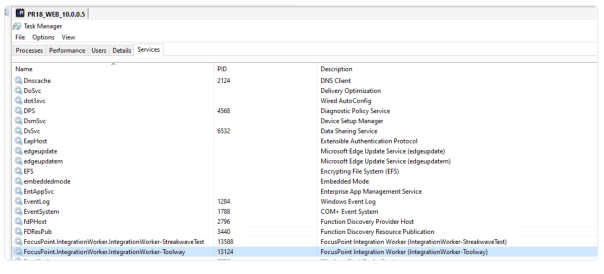

Open Task Manager → Services tab and confirm the new service appears and is running.

The service is listed as FocusPoint.IntegrationWorker.IntegrationWorker-<CompanyName> with an active PID. For example:

• IntegrationWorker-StreakwaveTest (PID 13588)
• IntegrationWorker-Toolway (PID 13124)

Step 4 — Configure SLSync Portal

Go to the SLSync Portal and update the ClientURL under Settings. The URL format is:

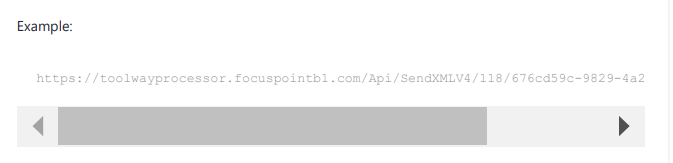

https://<processor-domain>/Api/SendXMLV4/<DbId>/<ApiKey>

Each PPM instance has its own URL.

Step 4.1 — Find DbId and API Key

The URL parameters come from the FpTenants database:

Replace both values in the ClientURL accordingly.

Step 5 — Done

The Integration Worker Service is now installed and connected. SAP inbound messages will be processed by the worker service instead of the web application.

Verification Checklist

• ☐ Web app appsettings.json has EnableSapJobs: false
• ☐ PPM is updated with the latest build
• ☐ Worker service folder is created with correct appsettings.json
• ☐ Windows Service is installed and running (visible in Task Manager)
• ☐ SLSync Portal ClientURL is configured with correct DbId and API Key
• ☐ Worker health endpoint responds: http://<server>:<port>/health
